XM Receiver (DRR) Theftlock Reset

GM XM Digital Radio Receiver (DRR) Theftlock reset & testing service.  Simply send us your receiver module and we will send it back unlocked and ready to work in your vehicle. Great approach to add factory XM satellite radio to your original OEM GM vehicle sound system.

  • Unlock any compatible XM receiver module for use in your vehicle
  • No need to spend money for an overpriced new XM receiver module, use a much lower cost surplus or salvage unit from a similar vehicle
  • Add OEM XM satellite radio to your GM factory ‘XM ready’ radio or navigation system
  • Great service for do-it-yourselfers, avoid the dealer hassle

GM dealers are unable to provide this unlock service – the XM satellite Digital Radio Receiver module cannot be unlocked using a Tech 2 tool or SPS TIS programming software. However, this does not mean that the Theftlock cannot be reset on the XM receiver module. We are able to perform this reprogramming for you, and it does not require opening up the unit.

In addition to unlocking, we will also fully test your XM receiver module – checking for any past fault codes that would indicate any intermittent problems. A detailed report is provided with the returned unit.

XM unit will be fully tested for…

  • Proper current consumption
  • Audio output
  • Satellite antenna input signal strength
  • Fault codes checked (DTCs)

NOTE: We don’t perform module repairs, but we will note any issues – should you wish to address them with the original provider of the unit.

Unlock service provided for all OEM factory Digital Radio Receiver modules made for GM by Delphi. To confirm, please check the photos and info below (your unit or radio may look slightly different).

Photos of a typical XM Digital Radio Receiver Module:

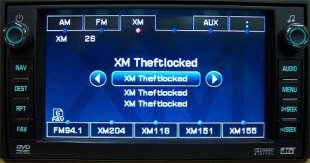

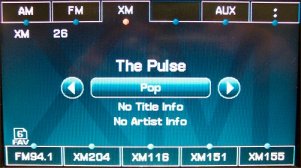

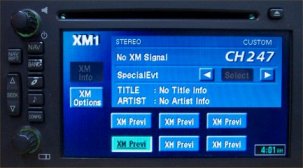

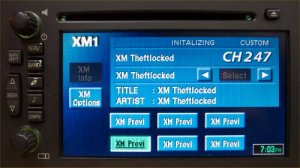

Photos of a few radio head units which work with the XM receiver, before and after Theftlock has been cleared…



XM Theftlock reset and testing service is for any of the following vehicles…

  • Buick: Enclave / Lacrosse / Lucerne / Rainier / Rendezvous / Terraza
  • Cadillac: CTS / Deville / DTS / Escalade / STS / SRX / XLR
  • Chevrolet Avalanche / Cobalt / Corvette / Equinox / HHR / Impala / Malibu / Monte Carlo / Silverado / Suburban / Tahoe / Trailblazer / Traverse / Uplander / Venture
  • GMC: Acadia / Denali / Envoy / Savana / Sierra / Terrain / Yukon
  • Hummer: H2 / H3
  • Saturn: Astra / Aura / Ion / Outlook / Relay / Sky / Vue
  • Pontiac: G6 / G8 / Gran Prix / GTO / Montana / Solstice / Torrent / Vibe

Here is just a short list of some of the XM receiver module part numbers that are covered (GM actually has hundreds…)

10333560 10349209 10365661 10367164 15125061 15217080 15268996 15270316 15797195 15833392 15838797 15849150 15854742 15907728 15908583 20881491 20883237 20890292 20938347 20942555 22686833 22692861 22729350 22731178 25762114 25762115 25773123 25911777 25912359 28010039 28026371 28034661 28036548 28039776 28040222 28043359 28044560 28059655 28059656 28126659 28126669 28231510 28231531

Don’t see your specific XM receiver part number listed above? Don’t worry, that is only a partial list of supported modules. Though, please contact us with your specific vehicle and XM module part number to ensure compatibility prior to buying.

Simply send us your locked module via a shipping method of your choosing – tracking and insurance preferred. Upon receipt of the unit, the module will be thoroughly tested (as detailed above) and unlocked. Unit will then be promptly shipped back via UPS ground (calculated at checkout), or please inquire about expedited shipping if you require the unit sooner.

Also looking to change out your OEM factory radio to a GM premium or navigation unit? Please check our services for GM radio unlocking and testing. We’ll be happy to combine shipping on both a radio reset and XM reset.

Please feel free to contact us with any technical questions about adding XM satellite radio to your vehicle. In most cases the XM upgrade simply requires installation of the Digital Radio Receiver (DRR) module and satellite radio antenna. Of course, you also need to add the 8 digit XM Radio ID code (displayed on XM Channel 0) to a new or existing XM Radio subscription. But, you may need to do some additional steps depending on your vehicle build – we are happy to advise.

$34.99 USD plus return shipping cost (calculated at checkout)

The return shipping cost to you is included – you would be responsible for shipping the unit to us.

NOTE:  Radios & XM units photos shown are for information only.  No radios or XM receivers are included with XM receiver reset and testing services.

Additional Note:  Are you a salvage yard and have several radios which you would like tested and unlocked?  Please feel free to contact us with any volume pricing inquires.
